Place of Origin: | Zhejiang, China (Mainland) |
Brand Name: | Amtruth or OEM |
Certification: | CE & RoHS |
Model Number: | BDSL201 |
Minimum Order Quantity: | 1pc sample welcome |
---|---|
Price: | Negotiable |
Packaging Details: | 1pc/ctn |
Delivery Time: | 5-30 days upon order Qty |
Payment Terms: | L/C, T/T, other terms negotiable |
Supply Ability: | 30000pcs/month |
Power: | 50-80w | Material: | Die-cast Aluminum Alloy |
---|---|---|---|
Housing Color: | Silver Grey/black, Other Color Upon Request | CRI (Ra>): | 70 |
IP Rating: | IP65 | Certification: | CE & RoHS |
High Light: | led site lighting fixtures,led light street lamp |
Aluminum Housing IP65 Outdoor 60w/70w Energy Saving Led Street Light
Description:

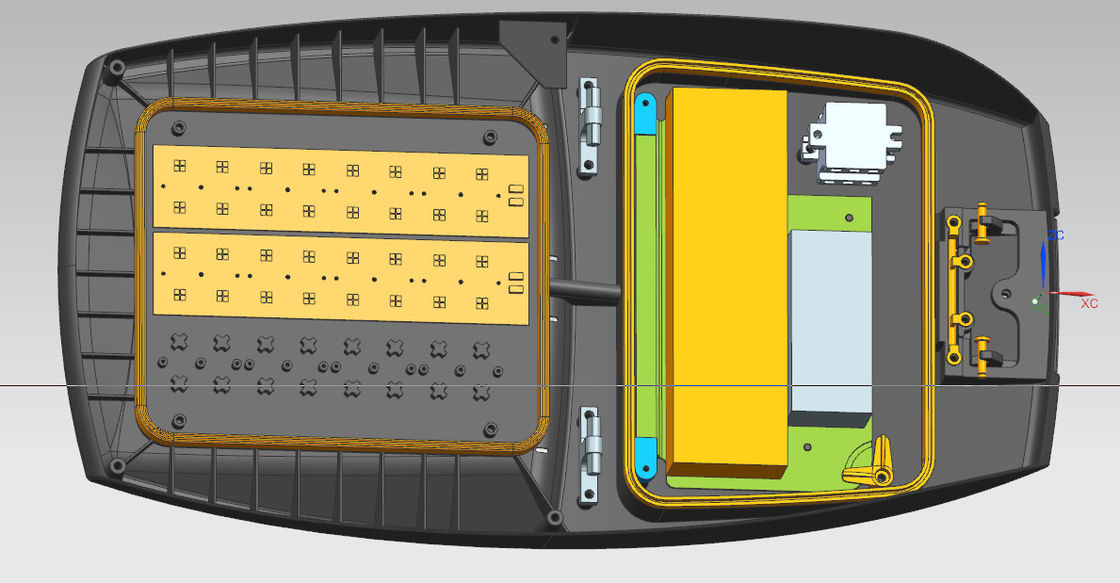

High quality cast aluminum body, with its attachment pole mount.
It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.
4mm thick clear glass.
Powder coating.
Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.
Choice of various types of optical road more suited to the requirements.
Power drivers standard, on request you can also install dimmable driver.
Applications:
These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.
It is perfect for secondary roads and pathways. It sports a compact body, which offers a highly efficient lighting solution as street lights.
Specifications:
Name | LED Street Light | ||
Model No. | BDSL201 | BDSL202 | BDSL203 |
Light source | SMD | ||
Chip | 3030 | ||
Warranty | 5 years | ||
Power(W) | 60/70 | 100/120 | 180/200 |
Voltage | AC85-265V 50-60Hz | ||
Surge protection | 4KV/6KV/10KV | ||
Driver efficiency | >90% | ||
Power factor | 0.9 | ||
Luminous flux(lm) | 7800/9100 | 13000/15600 | 23400/26000 |
Luminous efficacy(lm/w) | 130 | 130 | 130 |
CRI | >70 | ||
Color temperature | 3000k/4000k/5700k | ||
LED quantity(PCS) | 144 | 192 | 320 |
Beam angle | 150°*75° | ||
Housing material | Die-cast Aluminum Alloy | ||
Lens material | PC | ||
Ambient temperature | -40℃~50℃ | ||
Working temperature | <60° | ||
Storage temperature | -40℃~50℃ | ||
IP Rating | IP65 | ||
IK Rating | IK08 | ||
Installation | Φ60-Φ76mm |
Light Distribution Curve:
