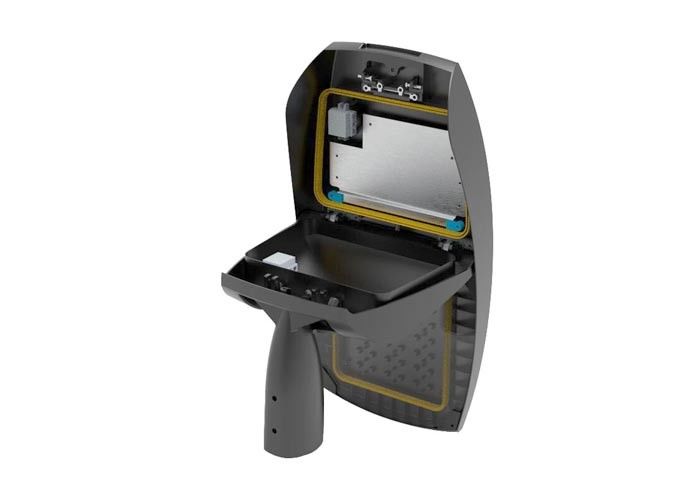

IP65 60w Led Parking Lot Light Fixtures 70CRI Long Life Span 50000 Hour

IP65 60w Led Parking Lot Light Fixtures 70CRI Long Life Span 50000 Hour

IP65 60w Led Parking Lot Light Fixtures 70CRI Long Life Span 50000 Hour

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Amtruth or OEM
Certification: CE & RoHS
Model Number: BDSL201

Payment & Shipping Terms:

Minimum Order Quantity: 1pc sample welcome
Price: Negotiable
Packaging Details: 1pc/ctn
Delivery Time: 5-30 days upon order Qty
Payment Terms: L/C, T/T, other terms negotiable
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Power: 50-80w Material: Die-cast Aluminum Alloy
Housing Color: Silver Grey/black, Other Color Upon Request CRI (Ra>): 70
IP Rating: IP65 Certification: CE & RoHS
High Light:

led area light fixtures


led light street lamp

Aluminum Housing IP65 Outdoor 60w/70w Energy Saving Led Street Light



High quality cast aluminum body, with its attachment pole mount.

It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.

4mm thick clear glass.

Powder coating.

Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.

Choice of various types of optical road more suited to the requirements.

Power drivers standard, on request you can also install dimmable driver.


Detailed Fectures

  1. Die-casting aluminum body with anti-corrosion treatment.
  2. Highly polished aluminum reflector.
  3. Adjustable bracket for angle of light output
  4. IP66 rated for external use.
  5. Equipped with SMD3030 chip, generate high luminous flux.
  6. High efficient and power factor led power supply
  7. Long life span over 50000 hour


These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.




Name LED Street Light
Model No. BDSL201 BDSL202 BDSL203
Light source SMD
Chip 3030
Warranty 5 years
Power(W) 60/70 100/120 180/200
Voltage AC85-265V 50-60Hz
Surge protection 4KV/6KV/10KV
Driver efficiency >90%
Power factor 0.9
Luminous flux(lm) 7800/9100 13000/15600 23400/26000
Luminous efficacy(lm/w) 130 130 130
CRI >70
Color temperature 3000k/4000k/5700k
LED quantity(PCS) 144 192 320
Beam angle 150°*75°
Housing material Die-cast Aluminum Alloy
Lens material PC
Ambient temperature -40℃~50℃
Working temperature <60°
Storage temperature -40℃~50℃
IP Rating IP65
IK Rating IK08
Installation Φ60-Φ76mm


Light Distribution Curve:

IP65 60w Led Parking Lot Light Fixtures 70CRI Long Life Span 50000 Hour
