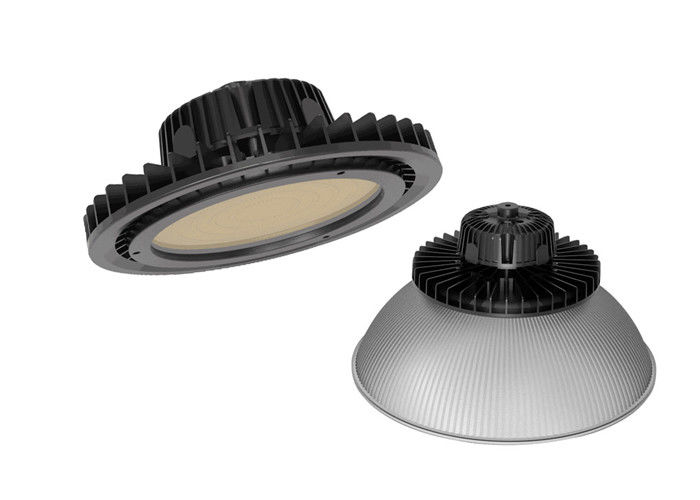

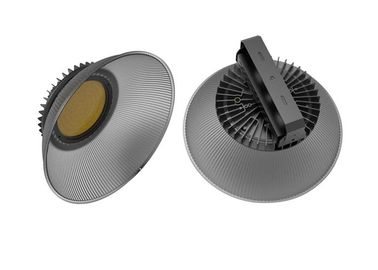

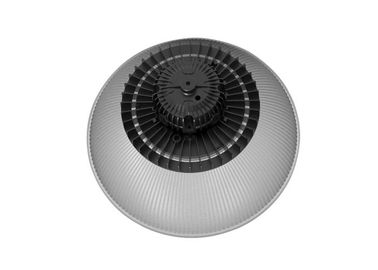

CE IP65 IK09 UFO Led High Bay Light 100W for Factory Warehouse Industrial GYM
Feature of BEUF101 LED Highbay Light:
• IP65 waterproof , suitable wet & tough environment.
• SMD 3030 LED Chips, 160lm/w.
• Low power consumption, energy saving, with longer lifetime.
• Environmentally friendly, no UV , no mercury and other pollutants.
• Two installations: Bracket & Hooking Hang for options.
• High pure aluminum heatsink design increase more airflow for better heat dissipation.
More in detail:
Die-cast Aluminum Radiator :Integrated die-casting molding, strengthen the heat dissipation
Driver: High performance, high power factor
Sealed Tempered Glass: Prevent ingress of foreign objectives effectively.
Chip: High brightness, low degradation and longevity.
Waterproof Silicon: Double waterproof silicon for each side.
Double radiator, large area heat dissipation: UFO design, shells adopt new cooling design, increase air circulation, it resolves heat dissipation problem, thereby prolonging the service life of the lamp
Product Type:
Technical Data:
| ITEM NO. |
BDUF101 |
BDUF201 |
BDUF301 |
| Nominal Wattage |
100w |
150w |
200w |
| Input Voltage |
AC 100-240v / 277V 50/60Hz |
AC 100-240v / 277V 50/60Hz |
AC 100-240v / 277V 50/60Hz |
| LED Brand/Driver |
Lumileds / Inventronics |
Lumileds / Inventronics |
Lumileds / Inventronics |
| Lumen Output (+/-5%) |
12000lm/w |
18000lm/w |
24000lm/w |
| Luminous Efficacy |
120lm/w |
120lm/w |
120lm/w |
| Power Factor |
>0.95 |
>0.95 |
>0.95 |
| THD |
<20% |
<20% |
<20% |
| Operating Temperature |
-40℃ to 50℃ |
-40℃ to 50℃ |
-40℃ to 50℃ |
| CRI |
Ra>70 |
Ra>70 |
Ra>70 |
| CCT |
4000k, 5000k, 5700k |
4000k, 5000k, 5700k |
4000k, 5000k, 5700k |
| Lumen Maintenance |
>75,000hrs at L70 25℃ |
>75,000hrs at L70 25℃ |
>75,000hrs at L70 25℃ |
| Rating |
IP65, IK10 |
IP65, IK10 |
IP65, IK10 |
| Beam Angle |
60°/75*135° |
60°/75*135° |
60°/75*135° |
| Dimension |
Φ300 *126mm |
Φ339*130mm |
Φ380*142mm |
| Net Weight |
4.8kgs |
5.2kgs |
6.5kgs |
| Gross Weight |
5.8kgs |
6.0kgs |
7.5kgs |
IES Test Report:
Why choose Our UFO LED High Bay light ?
1) Our UFO series High bay light adopts high pure aluminum with patent appearance design. It has perfect heat dissipation function and excellent appearance design.
2) We have mature processing technology of LED light fixtures. Make sure all our UFO high bay lights high quality and long time service.
3) UFO High bay lights Driver adopted big Brand driver. high PF, high efficiency and long service time.
4) New Designed UFO high bay lights have different beam angle, It can meet different demand.
5) UFO High bay can make dimmable and non-dimmable.
6) Our UFO high bay has a warranty for 5 years/3 years . This can help you win more clients and market.
