Product Description
______________________________________________________________________________________
Product Features:
Efficiency of chips:150-160 Im/w,170-180 Im/w
LENS:Optical grade PC,anti-UV oxidation
Beam Angle:120
Housing:Die-casting aluminum housing with excellent heat dissipation,surface treated with powder coated finish for corrosion and static
Resistenance.
Environment Friendly: Without harmful radiation and lead-free.
High Luminaire efficiency over 90%
IP class:IP 65
Packaging & Delivery:
Selling Units: Single item
Packaging Detail:
1pcs/carton
5 levels carton or as per costumers requests or as per customers requests
Lead Time:
| Quantity(Boxes) |
1 - 1 |
>1 |
| Est. Time(days) |
15 |
To be negotiated |

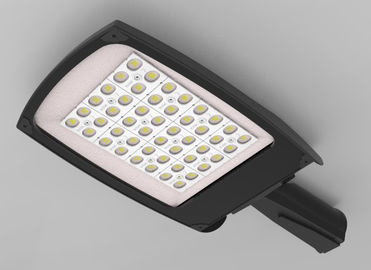

Modern Waterproof Street Light, LED Light Street, Aluminum SMD 150W LED Street Light Outdoor
Product Parameter————————————————————————————————————————————————
| Model No. |
BD-G01A |
BD-G01B |
BD-G01C |
BD-G01D |
| Power |
30W |
90W |
120W |
150W |
| Luminous flux(lm) |
3000 |
9000 |
12000 |
15000 |
| Voltage |
AC 100-265V |
| Color Temp. |
3000k/4000k/5700k |
| Life-span |
≥50000H |
| Storage Temp. |
-40℃~50℃ |
| IP Rating |
IP65 |
| IK Rating |
IK08 |
Product Dimension————————————————————————————————————————————————
Light Distribution Curve————————————————————————————————————————————————
Safety Information
————————————————————————————————————————————————
1,Using the standard working voltage: AC100-265V, 50/60Hz, do not exceed.
2,Be sure the power supply is turned off before installation.
3,Switch off power of the mains supply or the connection lead respectively before doing any works.
4,Please note waterproof, dustproof, electricity prevention and shockproof for the external power wires.
5,Directly fix bolts on the installation stem through the hole on the mounting bracket.
6,Be sure the connection between the wires is in good condition when install the lamps, beware of leakage.
7,Please read the specification carefully before installation.
8,The complete installation must be handled by an electrical expert.
