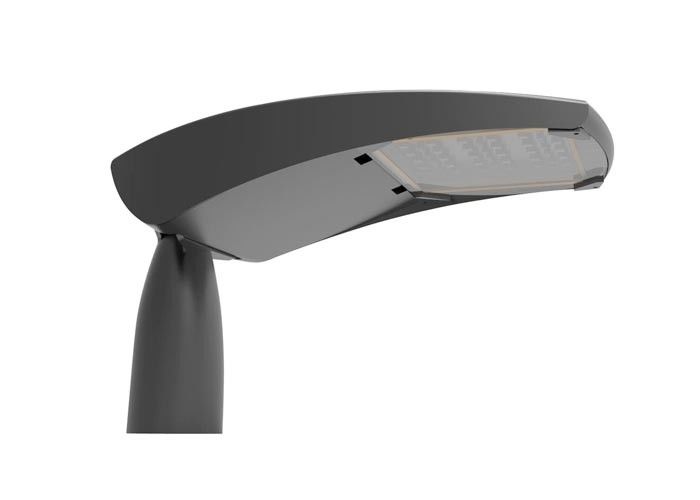

Outdoor 70w Led Street Light Fixture Led Roadway Lighting Aluminum Housing

Outdoor 70w Led Street Light Fixture Led Roadway Lighting Aluminum Housing

Outdoor 70w  Led Street Light Fixture Led Roadway Lighting Aluminum Housing

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Amtruth or OEM
Certification: CE & RoHS
Model Number: BDSL201

Payment & Shipping Terms:

Minimum Order Quantity: 1pc sample welcome
Price: Negotiable
Packaging Details: 1pc/ctn
Delivery Time: 5-30 days upon order Qty
Payment Terms: L/C, T/T, other terms negotiable
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Power: 50-80w Material: Die-cast Aluminum Alloy
Housing Color: Silver Grey/black, Other Color Upon Request CRI (Ra>): 70
IP Rating: IP65 Certification: CE & RoHS
High Light:

led roadway lighting fixtures


energy efficient street lighting

Aluminum Housing IP65 Outdoor 60w/70w Energy Saving Led Street Light



High quality cast aluminum body, with its attachment pole mount.

It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.

4mm thick clear glass.

Powder coating.

Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.

Choice of various types of optical road more suited to the requirements.

Power drivers standard, on request you can also install dimmable driver.



  • Driven by high efficiency constant current and 60% energy-saving than traditional lamps; over -current protection, over-voltage protection, lightning protection, high temperature protection, fully ensures the long life span and high stability.
  • Durable, long lifetime, and last up to 50000 hours; no need to replace frequently and less daily maintenance.
  • Green product, no UV or IR radiation, no mercury pollution.
  • With Excellent exterior design, the lamp is waterproof and dust proof, protecting rate: IP66.
  • Fast response, no flicker; wide operating voltage range.
  • LEDs which packaged by multi-chips is high lumen, stable performance, low light failure and no dead lights.



These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.




Name LED Street Light
Model No. BDSL201 BDSL202 BDSL203
Light source SMD
Chip 3030
Warranty 5 years
Power(W) 60/70 100/120 180/200
Voltage AC85-265V 50-60Hz
Surge protection 4KV/6KV/10KV
Driver efficiency >90%
Power factor 0.9
Luminous flux(lm) 7800/9100 13000/15600 23400/26000
Luminous efficacy(lm/w) 130 130 130
CRI >70
Color temperature 3000k/4000k/5700k
LED quantity(PCS) 144 192 320
Beam angle 150°*75°
Housing material Die-cast Aluminum Alloy
Lens material PC
Ambient temperature -40℃~50℃
Working temperature <60°
Storage temperature -40℃~50℃
IP Rating IP65
IK Rating IK08
Installation Φ60-Φ76mm


Light Distribution Curve:

Outdoor 70w  Led Street Light Fixture Led Roadway Lighting Aluminum Housing
