Aluminum Housing IP65 IK08 Outdoor CE RoHS Certified 100w/120w LED Street Light Housing
Description:

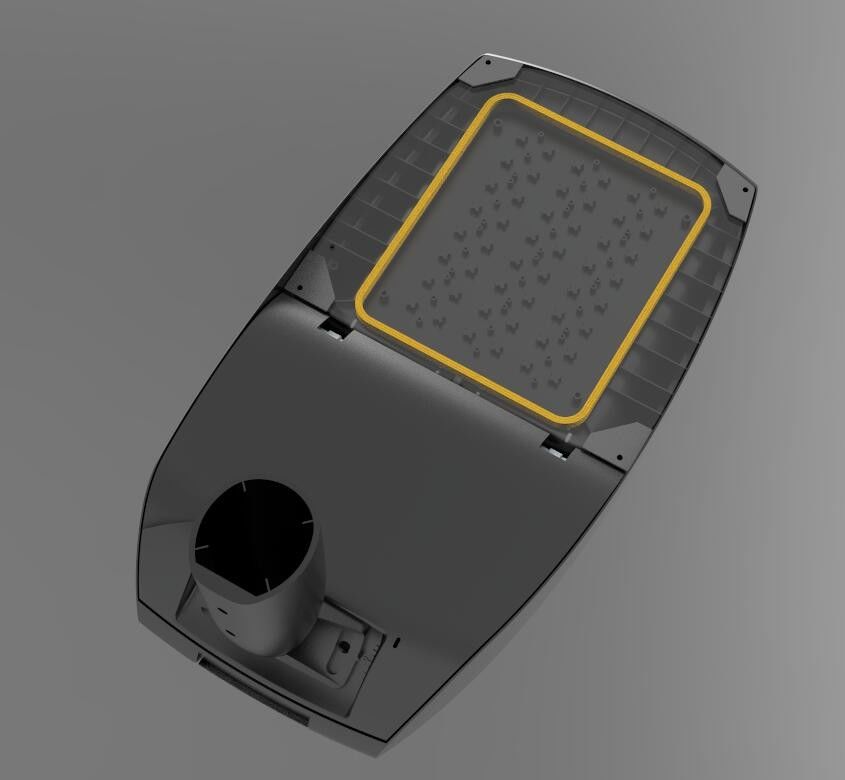

High quality cast aluminum body, with its attachment pole mount.
It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.
4mm thick clear glass.
Powder coating.
Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.
Choice of various types of optical road more suited to the requirements.
Power drivers standard, on request you can also install dimmable driver.
LED street lighting has longer life and fewer maintenance times, and the overall engineering quality is far better than high-pressure sodium lamps
It has a light and slim module Aluminum housing. LED street lighting has higher brightness, However, its lights is also gentle, it won't affect pedestrian. Welcome to test samples.
Applications:
These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.
Specifications:
| Name |
LED Street Light |
| Model No. |
BDSL201 |
BDSL202 |
BDSL203 |
| Light source |
SMD |
| Chip |
3030 |
| Warranty |
5 years |
| Power(W) |
60/70 |
100/120 |
180/200 |
| Voltage |
AC85-265V 50-60Hz |
| Surge protection |
4KV/6KV/10KV |
| Driver efficiency |
>90% |
| Power factor |
0.9 |
| Luminous flux(lm) |
7800/9100 |
13000/15600 |
23400/26000 |
| Luminous efficacy(lm/w) |
130 |
130 |
130 |
| CRI |
>70 |
| Color temperature |
3000k/4000k/5700k |
| LED quantity(PCS) |
144 |
192 |
320 |
| Beam angle |
150°*75° |
| Housing material |
Die-cast Aluminum Alloy |
| Lens material |
PC |
| Ambient temperature |
-40℃~50℃ |
| Working temperature |
<60° |
| Storage temperature |
-40℃~50℃ |
| IP Rating |
IP65 |
| IK Rating |
IK08 |
| Installation |
Φ60-Φ76mm |
Light Distribution Curve:
