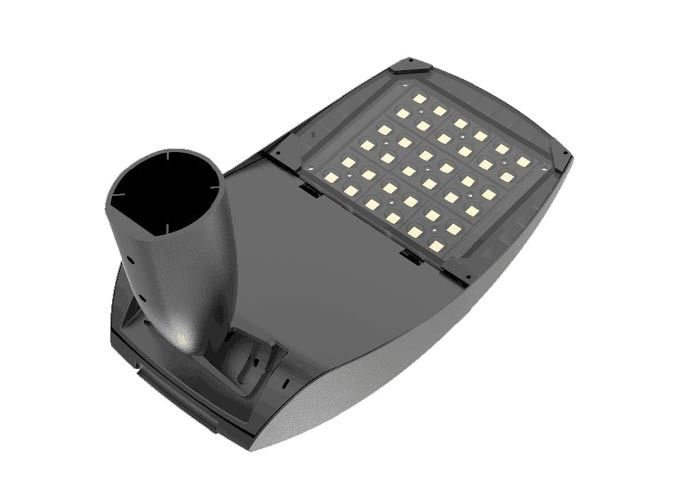

Aluminum Housing IP65 Outdoor 60w/70w Energy Saving Led Street Light
Description:
High quality cast aluminum body, with its attachment pole mount.
It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.
4mm thick clear glass.
Powder coating.
Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.
Choice of various types of optical road more suited to the requirements.
Power drivers standard, on request you can also install dimmable driver.
Applications:
These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.
Specifications:
| Name |
LED Street Light |
| Model No. |
BDSL201 |
BDSL202 |
BDSL203 |
| Light source |
SMD |
| Chip |
3030 |
| Warranty |
5 years |
| Power(W) |
60/70 |
100/120 |
180/200 |
| Voltage |
AC85-265V 50-60Hz |
| Surge protection |
4KV/6KV/10KV |
| Driver efficiency |
>90% |
| Power factor |
0.9 |
| Luminous flux(lm) |
7800/9100 |
13000/15600 |
23400/26000 |
| Luminous efficacy(lm/w) |
130 |
130 |
130 |
| CRI |
>70 |
| Color temperature |
3000k/4000k/5700k |
| LED quantity(PCS) |
144 |
192 |
320 |
| Beam angle |
150°*75° |
| Housing material |
Die-cast Aluminum Alloy |
| Lens material |
PC |
| Ambient temperature |
-40℃~50℃ |
| Working temperature |
<60° |
| Storage temperature |
-40℃~50℃ |
| IP Rating |
IP65 |
| IK Rating |
IK08 |
| Installation |
Φ60-Φ76mm |
Light Distribution Curve:
