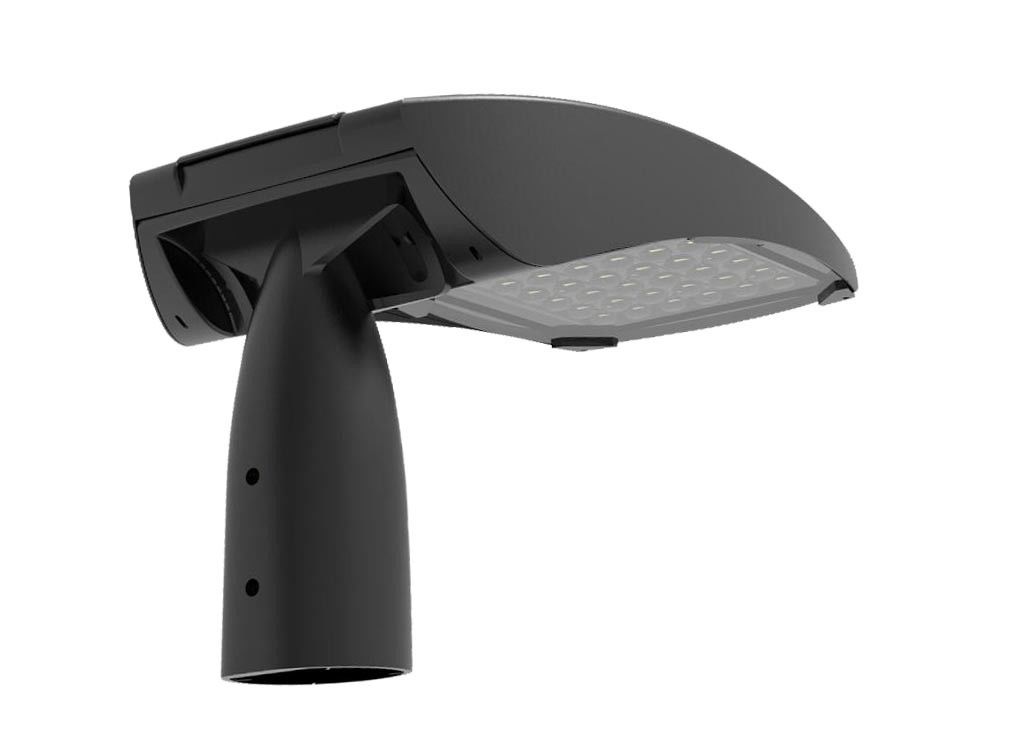

220v Led Street Light Fixture / High Bright Pole Mounted Street Lights

220v Led Street Light Fixture / High Bright Pole Mounted Street Lights

220v Led Street Light Fixture / High Bright Pole Mounted Street Lights

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Amtruth or OEM
Certification: CE & RoHS
Model Number: BDSL201

Payment & Shipping Terms:

Minimum Order Quantity: 1pc sample welcome
Price: Negotiable
Packaging Details: 1pc/ctn
Delivery Time: 5-30 days upon order Qty
Payment Terms: L/C, T/T, other terms negotiable
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Power: 50-80w Material: Die-cast Aluminum Alloy
Housing Color: Silver Grey/black, Other Color Upon Request CRI (Ra>): 70
IP Rating: IP65 Certification: CE & RoHS
High Light:

led roadway lighting fixtures


led street light luminaires

Aluminum Housing IP65 Outdoor 60w/70w Energy Saving Led Street Light



High quality cast aluminum body, with its attachment pole mount.

It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.

4mm thick clear glass.

Powder coating.

Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.

Choice of various types of optical road more suited to the requirements.

Power drivers standard, on request you can also install dimmable driver.




These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.




Name LED Street Light
Model No. BDSL201 BDSL202 BDSL203
Light source SMD
Chip 3030
Warranty 5 years
Power(W) 60/70 100/120 180/200
Voltage AC85-265V 50-60Hz
Surge protection 4KV/6KV/10KV
Driver efficiency >90%
Power factor 0.9
Luminous flux(lm) 7800/9100 13000/15600 23400/26000
Luminous efficacy(lm/w) 130 130 130
CRI >70
Color temperature 3000k/4000k/5700k
LED quantity(PCS) 144 192 320
Beam angle 150°*75°
Housing material Die-cast Aluminum Alloy
Lens material PC
Ambient temperature -40℃~50℃
Working temperature <60°
Storage temperature -40℃~50℃
IP Rating IP65
IK Rating IK08
Installation Φ60-Φ76mm


Installation information of LED Street Light:

1. Check all the parts and accessories of LED street lights;

2. Must cut off the power supply before installation;

3. Make sure LED street light is fixed tightly to the surface of place for installation;

4. Connect the power line of light with power supply, then switch on the power;

5. When it is working, it must be kept vertical downwar

Light Distribution Curve:

220v Led Street Light Fixture / High Bright Pole Mounted Street Lights
