|Place of Origin:||Zhejiang, China (Mainland)|
|Brand Name:||Amtruth or OEM|
|Certification:||CE & RoHS|
|Minimum Order Quantity:||1pc sample welcome|
|Delivery Time:||5-30 days upon order Qty|
|Payment Terms:||L/C, T/T, other terms negotiable|
|Working Temp.(℃）:||-40-+55||Light Efficiency:||>120lm/w|
|Life Span:||>50000H||LED Qty:||320pcs|
led light street lamp,
led outdoor area street lighting

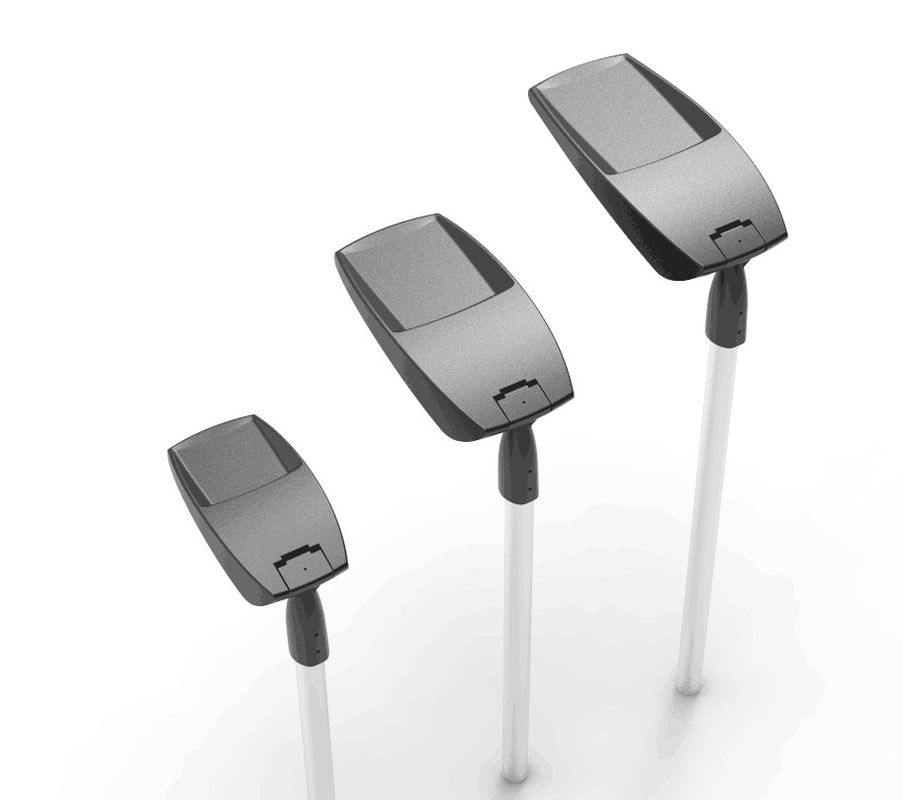

Aluminum Housing IP65 IK08 Outdoor CE RoHS Certified 180w/200w LED Street Light Housing
High quality cast aluminum body, with its attachment pole mount.
It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.
4mm thick clear glass.
Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.
Choice of various types of optical road more suited to the requirements.
Power drivers standard, on request you can also install dimmable driver.
Competitive advantages of led street light:
1) Adopting 130 SMD3030 led chips, the whole system can achieve 120lm/w output.
2) Adopting Meanwell power supply and aluminum housing which is good for heat dissipation and ensure long life span and reduce light decay.
3) Waterproof screws, IP65, firm and durable.
4) Modular design, elegant and easy for repairing, save money for maintenance and replacement.
5) 5 years warranty.
These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.
High Efficacy LED Source
BDSL301 series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of chips is more than 130 lm/w.
High-end LED Driver
High-end MeanWell HLG Series Flicker free LED driver Optimal stabilityperformance and lifespan.
Variety Light Distribution
BDSL301 series provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III.
|Name||LED Street Light|
|Chip||3030 / 3535 / 5050|
|Optical Information||Luminous flux(lm)||23400/26000|
|Mechanical Information||Housing material||Die-cast Aluminum Alloy|
