Aluminum Housing IP65 IK08 Outdoor CE RoHS Certified 180w/200w LED Street Light Housing
Description:

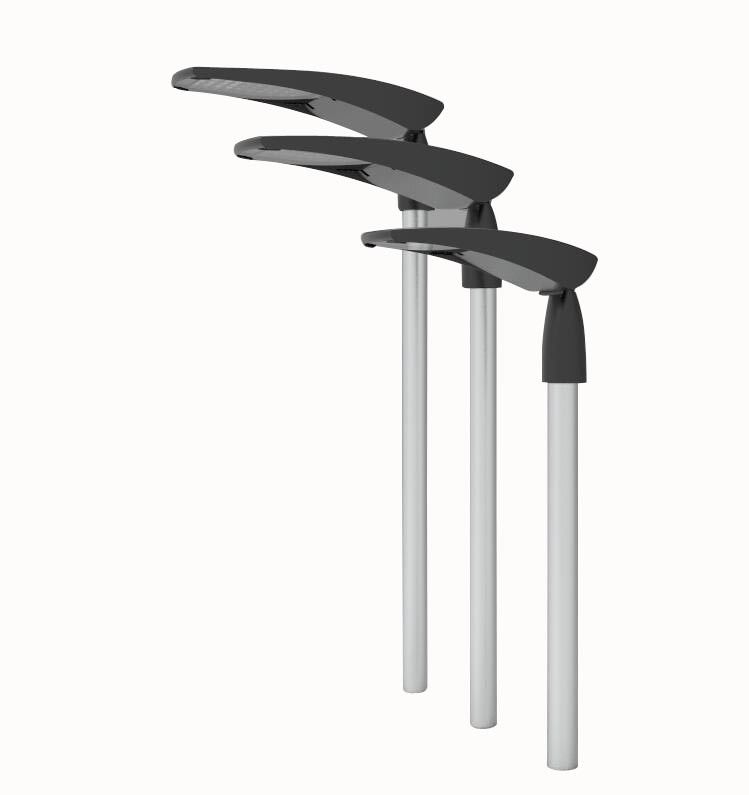

High quality cast aluminum body, with its attachment pole mount.
It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.
4mm thick clear glass.
Powder coating.
Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.
Choice of various types of optical road more suited to the requirements.
Power drivers standard, on request you can also install dimmable driver.
Applications:
These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.
Specifications:
High Efficacy LED Source
BDSL301 series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of chips is more than 130 lm/w.
High-end LED Driver
High-end MeanWell HLG Series Flicker free LED driver Optimal stabilityperformance and lifespan.
Variety Light Distribution
BDSL301 series provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III.
|
General
Information
|
Name |
LED Street Light |
| Model No. |
BDSL301 |
| Light source |
SMD |
| Chip |
3030 / 3535 / 5050 |
| Warranty |
5 years |
| Electrical Information |
Power(W) |
180/200 |
| Voltage |
AC100-277V 50-60Hz |
| Surge protection |
4KV/6KV/10KV |
| Driver efficiency |
>90% |
| Power factor |
0.9 |
| Optical Information |
Luminous flux(lm) |
23400/26000 |
| Luminous efficacy(lm/w) |
130 |
| CRI |
>70 |
| Color temperature |
3000k/4000k/5700k |
| LED quantity(PCS) |
320 |
| Beam angle |
150°*75° |
| Mechanical Information |
Housing material |
Die-cast Aluminum Alloy |
| Lens material |
PC |
| Ambient temperature |
-40℃~50℃ |
| Working temperature |
<60° |
| Storage temperature |
-40℃~50℃ |
| IP Rating |
IP65 |
| IK Rating |
IK08 |
| Installation |
Φ60-Φ76mm |
