180 Watt Outdoor Led Light Fixtures High Brightness Roadway Lighting Led

180 Watt Outdoor Led Light Fixtures High Brightness Roadway Lighting Led

    • 180 Watt Outdoor Led Light Fixtures High Brightness Roadway Lighting Led
    • 180 Watt Outdoor Led Light Fixtures High Brightness Roadway Lighting Led
  • 180 Watt Outdoor Led Light Fixtures High Brightness Roadway Lighting Led

    Product Details:

    Place of Origin: Zhejiang, China (Mainland)
    Brand Name: Amtruth or OEM
    Certification: CE & RoHS
    Model Number: BDSL301

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc sample welcome
    Price: Negotiable
    Packaging Details: 1pc/ctn
    Delivery Time: 5-30 days upon order Qty
    Payment Terms: L/C, T/T, other terms negotiable
    Supply Ability: 30000pcs/month
    Contact Now
    Detailed Product Description
    Power: 180-200w CRI (Ra>): 70
    Working Temp.(℃): -40-+55 Light Efficiency: >120lm/w
    Life Span: >50000H LED Qty: 320pcs
    High Light:

    led city street lights

    ,

    pole mounted street lights

    Aluminum Housing IP65 IK08 Outdoor CE RoHS Certified 100w/120w LED Street Light Housing



    Description:

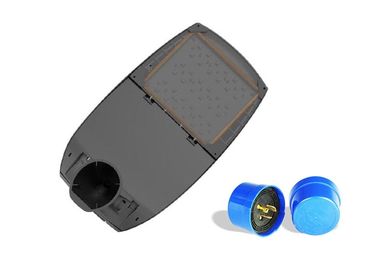

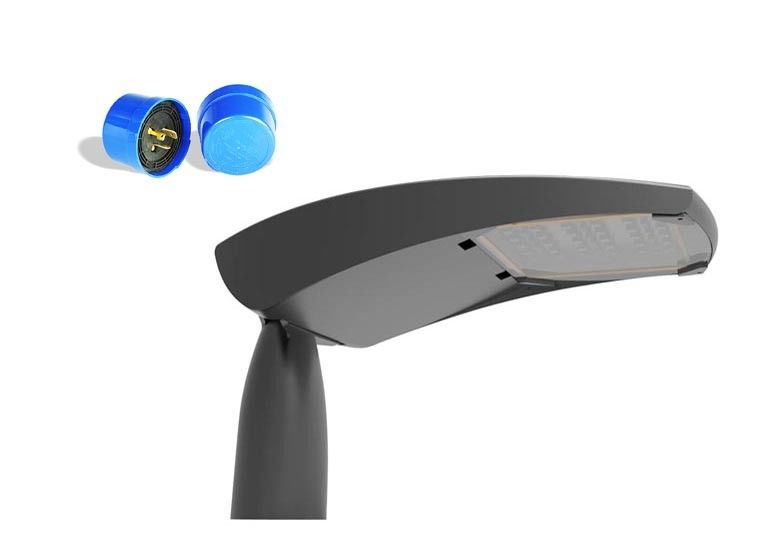

    High quality cast aluminum body, with its attachment pole mount.

    It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.

    4mm thick clear glass.

    Powder coating.

    Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.

    Choice of various types of optical road more suited to the requirements.

    Power drivers standard, on request you can also install dimmable driver.





    Applications:

    These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.



    Specifications:

    High Efficacy LED Source

    BDSL301 series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of chips is more than 130 lm/w.

    180 Watt Outdoor Led Light Fixtures High Brightness Roadway Lighting Led

    High-end LED Driver

    High-end MeanWell HLG Series Flicker free LED driver Optimal stabilityperformance and lifespan.

    180 Watt Outdoor Led Light Fixtures High Brightness Roadway Lighting Led



    Variety Light Distribution

    BDSL301 series provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
    Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III.

    180 Watt Outdoor Led Light Fixtures High Brightness Roadway Lighting Led



    General

    Information

    Name LED Street Light
    Model No. BDSL301
    Light source SMD
    Chip 3030 / 3535 / 5050
    Warranty 5 years
    Electrical Information Power(W) 180/200
    Voltage AC100-277V 50-60Hz
    Surge protection 4KV/6KV/10KV
    Driver efficiency >90%
    Power factor 0.9
    Optical Information Luminous flux(lm) 23400/26000
    Luminous efficacy(lm/w) 130
    CRI >70
    Color temperature 3000k/4000k/5700k
    LED quantity(PCS) 320
    Beam angle 150°*75°
    Mechanical Information Housing material Die-cast Aluminum Alloy
    Lens material PC
    Ambient temperature -40℃~50℃
    Working temperature <60°
    Storage temperature -40℃~50℃
    IP Rating IP65
    IK Rating IK08
    Installation Φ60-Φ76mm
