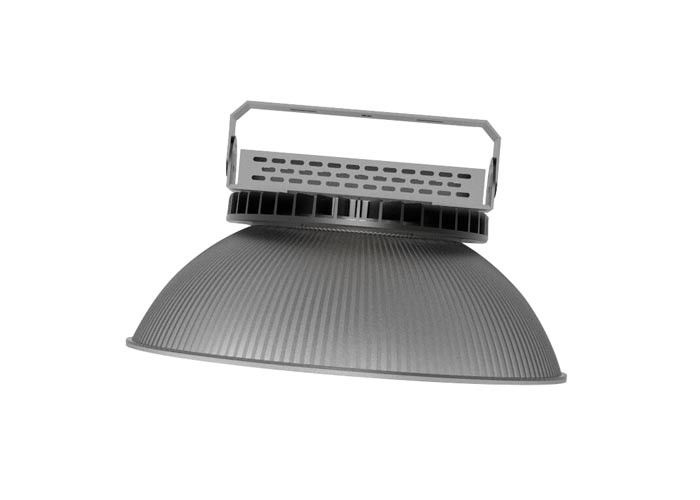

CE IP65 IK09 UFO Led High Bay Light 100W for Factory Warehouse Industrial GYM
Feature of BEUF101 LED Highbay Light:
• IP65 waterproof , suitable wet & tough environment.
• SMD 3030 LED Chips, 160lm/w.
• Low power consumption, energy saving, with longer lifetime.
• Environmentally friendly, no UV , no mercury and other pollutants.
• Two installations: Bracket & Hooking Hang for options.
• High pure aluminum heatsink design increase more airflow for better heat dissipation.
More in detail:
Die-cast Aluminum Radiator :Integrated die-casting molding, strengthen the heat dissipation
Driver: High performance, high power factor
Sealed Tempered Glass: Prevent ingress of foreign objectives effectively.
Chip: High brightness, low degradation and longevity.
Waterproof Silicon: Double waterproof silicon for each side.
Double radiator, large area heat dissipation: UFO design, shells adopt new cooling design, increase air circulation, it resolves heat dissipation problem, thereby prolonging the service life of the lamp
Technical Data:
| ITEM NO. |
BDUF101 |
BDUF201 |
BDUF301 |
| Nominal Wattage |
100w |
150w |
200w |
| Input Voltage |
AC 100-240v / 277V 50/60Hz |
AC 100-240v / 277V 50/60Hz |
AC 100-240v / 277V 50/60Hz |
| LED Brand/Driver |
Lumileds / Inventronics |
Lumileds / Inventronics |
Lumileds / Inventronics |
| Lumen Output (+/-5%) |
12000lm/w |
18000lm/w |
24000lm/w |
| Luminous Efficacy |
120lm/w |
120lm/w |
120lm/w |
| Power Factor |
>0.95 |
>0.95 |
>0.95 |
| THD |
<20% |
<20% |
<20% |
| Operating Temperature |
-40℃ to 50℃ |
-40℃ to 50℃ |
-40℃ to 50℃ |
| CRI |
Ra>70 |
Ra>70 |
Ra>70 |
| CCT |
4000k, 5000k, 5700k |
4000k, 5000k, 5700k |
4000k, 5000k, 5700k |
| Lumen Maintenance |
>75,000hrs at L70 25℃ |
>75,000hrs at L70 25℃ |
>75,000hrs at L70 25℃ |
| Rating |
IP65, IK10 |
IP65, IK10 |
IP65, IK10 |
| Beam Angle |
60°/75*135° |
60°/75*135° |
60°/75*135° |
| Dimension |
Φ300 *126mm |
Φ339*130mm |
Φ380*142mm |
| Net Weight |
4.8kgs |
5.2kgs |
6.5kgs |
| Gross Weight |
5.8kgs |
6.0kgs |
7.5kgs |
IES Test Report:
