No UV Energy Efficient Led City Street Lights 120lm/W Led Light Street Lamp

No UV Energy Efficient Led City Street Lights 120lm/W Led Light Street Lamp

No UV Energy Efficient Led City Street Lights 120lm/W Led Light Street Lamp

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Amtruth or OEM
Certification: CE & RoHS
Model Number: BDSL301

Payment & Shipping Terms:

Minimum Order Quantity: 1pc sample welcome
Price: Negotiable
Packaging Details: 1pc/ctn
Delivery Time: 5-30 days upon order Qty
Payment Terms: L/C, T/T, other terms negotiable
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Power: 180-200w CRI (Ra>): 70
Working Temp.(℃): -40-+55 Light Efficiency: >120lm/w
Life Span: >50000H LED Qty: 320pcs
High Light:

led light street lamp

,

high power led street light

Aluminum Housing IP65 IK08 Outdoor CE RoHS Certified 180w Led Street Light



Description:

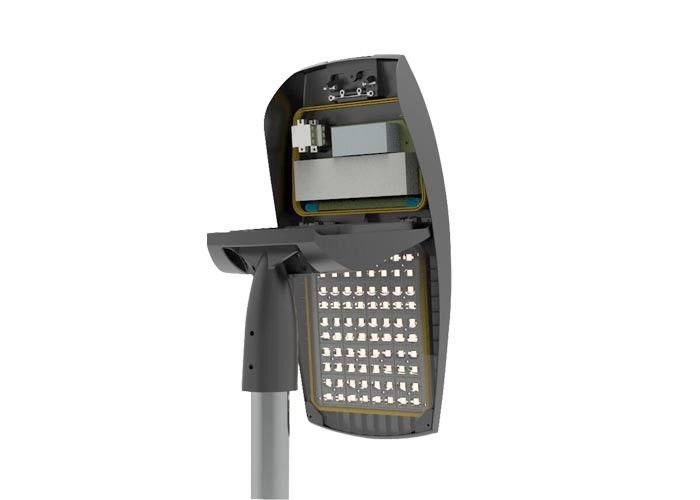

High quality cast aluminum body, with its attachment pole mount.

It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.

4mm thick clear glass.

Powder coating.

Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.

Choice of various types of optical road more suited to the requirements.

Power drivers standard, on request you can also install dimmable driver.



Features:



  • Driven by high efficiency constant current and 60% energy-saving than traditional lamps; over -current protection, over-voltage protection, lightning protection, high temperature protection, fully ensures the long life span and high stability.
  • Durable, long lifetime, and last up to 50000 hours; no need to replace frequently and less daily maintenance.
  • Green product, no UV or IR radiation, no mercury pollution.
  • With Excellent exterior design, the lamp is waterproof and dust proof, protecting rate: IP66.
  • Fast response, no flicker; wide operating voltage range.
  • LEDs which packaged by multi-chips is high lumen, stable performance, low light failure and no dead lights.



Applications:

These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.



Specifications:

High Efficacy LED Source

BDSL301 series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of chips is more than 130 lm/w.

No UV Energy Efficient Led City Street Lights 120lm/W Led Light Street Lamp

High-end LED Driver

High-end MeanWell HLG Series Flicker free LED driver Optimal stabilityperformance and lifespan.

No UV Energy Efficient Led City Street Lights 120lm/W Led Light Street Lamp



Variety Light Distribution

BDSL301 series provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III.

No UV Energy Efficient Led City Street Lights 120lm/W Led Light Street Lamp



General

Information

Name LED Street Light
Model No. BDSL301
Light source SMD
Chip 3030 / 3535 / 5050
Warranty 5 years
Electrical Information Power(W) 180/200
Voltage AC100-277V 50-60Hz
Surge protection 4KV/6KV/10KV
Driver efficiency >90%
Power factor 0.9
Optical Information Luminous flux(lm) 23400/26000
Luminous efficacy(lm/w) 130
CRI >70
Color temperature 3000k/4000k/5700k
LED quantity(PCS) 320
Beam angle 150°*75°
Mechanical Information Housing material Die-cast Aluminum Alloy
Lens material PC
Ambient temperature -40℃~50℃
Working temperature <60°
Storage temperature -40℃~50℃
IP Rating IP65
IK Rating IK08
Installation Φ60-Φ76mm
