| Place of Origin: | Zhejiang, China (Mainland) |
| Brand Name: | Amtruth or OEM |
| Certification: | CE & RoHS |
| Model Number: | BDSL301 |
| Minimum Order Quantity: | 1pc sample welcome |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/ctn |
| Delivery Time: | 5-30 days upon order Qty |
| Payment Terms: | L/C, T/T, other terms negotiable |
| Supply Ability: | 30000pcs/month |
| Power: | 180-200w | CRI (Ra>）: | 70 |
|---|---|---|---|
| Working Temp.(℃）: | -40-+55 | Light Efficiency: | >120lm/w |
| Life Span: | >50000H | LED Qty: | 320pcs |
| High Light: | high power led street light,led outdoor area street lighting |
||

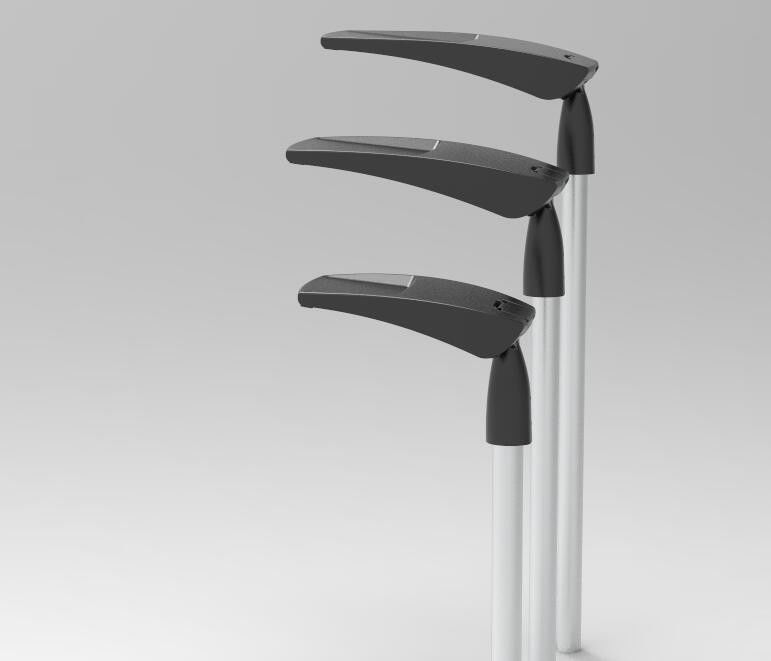

Aluminum Housing IP65 IK08 Outdoor CE RoHS Certified 180w/200w LED Street Light Housing
Description:
High quality cast aluminum body, with its attachment pole mount.
It can be mounted on an arm or pole top and tilt in 15° increments to keep it horizontal with the ground.
4mm thick clear glass.
Powder coating.
Led plate formed by the PCB, LED with efficiency up to 130lm/w and color temperature 2700-6500K.
Choice of various types of optical road more suited to the requirements.
Power drivers standard, on request you can also install dimmable driver.
Applications:
These lights with IP65 degree of protection suitable for illumination of road, highways, urban, suburban, residential streets etc.
Specifications:
High Efficacy LED Source
BDSL301 series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of chips is more than 130 lm/w.
High-end LED Driver
High-end MeanWell HLG Series Flicker free LED driver Optimal stabilityperformance and lifespan.
Variety Light Distribution
BDSL301 series provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III.
|
General Information |
Name | LED Street Light |
| Model No. | BDSL301 | |
| Light source | SMD | |
| Chip | 3030 / 3535 / 5050 | |
| Warranty | 5 years | |
| Electrical Information | Power(W) | 180/200 |
| Voltage | AC100-277V 50-60Hz | |
| Surge protection | 4KV/6KV/10KV | |
| Driver efficiency | >90% | |
| Power factor | 0.9 | |
| Optical Information | Luminous flux(lm) | 23400/26000 |
| Luminous efficacy(lm/w) | 130 | |
| CRI | >70 | |
| Color temperature | 3000k/4000k/5700k | |
| LED quantity(PCS) | 320 | |
| Beam angle | 150°*75° | |
| Mechanical Information | Housing material | Die-cast Aluminum Alloy |
| Lens material | PC | |
| Ambient temperature | -40℃~50℃ | |
| Working temperature | <60° | |
| Storage temperature | -40℃~50℃ | |
| IP Rating | IP65 | |
| IK Rating | IK08 | |
| Installation | Φ60-Φ76mm |
