Place of Origin: | Zhejiang, China (Mainland) |
Brand Name: | Amtruth or OEM |
Certification: | CE & RoHS |
Minimum Order Quantity: | 1pc sample welcome |
---|---|
Price: | negotiable |
Packaging Details: | 1pc/inner box, 6pcs/ctn |
Delivery Time: | 5-30 days upon order Qty |
Payment Terms: | L/C, T/T, other terms negotiable |
Supply Ability: | 50000pcs/month |
Input Voltage(V): | 220-240VAC | Light Efficiency: | 85LM/W |
---|---|---|---|
CRI(Ra): | >80 | Working Lifetime: | 25000 Hrs |
IP Rating: | IP65 | Sensor: | Optional |
Housing Color: | Black/white, Other Color Available Upon Request | Color Temperature: | 3000/4000/5000K Optional |
High Light: | led slimline floodlight,led flood light outdoor security lighting |

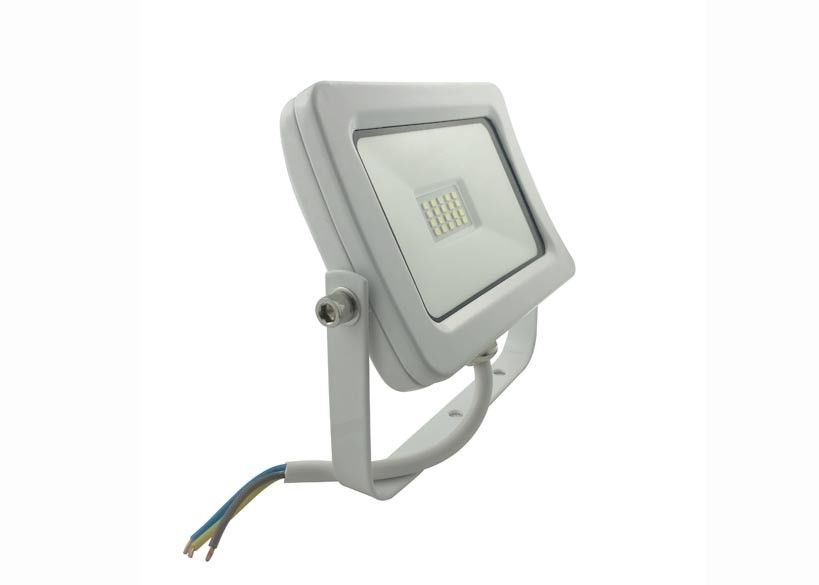

50w Die Cast Aluminum Slim Mini Curve Shaped IP65 Led Flood Light 10w, 2years warranty
Description:
Energy Saving: Save up to 70% of your energy bill 120° beam angle
Driverless Design: Excellent PF, super bright; Strong toughed tempered glass
Housing Structure: Made of high quality aluminum housing, tempered glass with UV powder coated. Reasonable structure of heat dissipation, good cooling
Fully Waterproof: IP65 waterproof rating for outdoor use 180 degree swivel bracket.
Application:
1) landscaping, tunnel, park, gas station
2) advertising board,outside wall
3) ambience lighting for bar, hotel, dance hall
4) lighting for building,clubs,stages,plazas
Specifications:
Tech Data | |
Model | BDFA103 |
Housing Material | Die-cast Aluminum Alloy |
Housing Color | Black/white, other color available upon request |
Cover Material | Tempered glass |
LED Type | SMD 2835 |
LED Qty | 42pcs |
Luminous Flux | 1700-1800lm |
Lamp Efficiency | >85% |
CRI (Ra) | >80 |
Color Temperature | 3000/4000/5000 optional |
Input Voltage | AC85~265V |
Driver | Driver on-board (built-in) |
Power Factor | >0.9 |
Working Lifetime | 25000hrs |
Warranty | 2 years |
Working Temperature | -25℃ ~ +55℃ |
Certification | CE & RoHS |
IP Grade | IP65 |
Sensor | Optional |
Dimension | 19.5 x15.0x3.8cm |
Package | 1pc per color box/white box,12pcs/ctn |
37.0*24.5*27.0cm, N.W.: 11.0kgs, G.W.:13.0kgs | |
Competitive Advantage:
Installation manual:
A). Cutting off the power and moving out the old lamp, meanwhile, please ensure your hands are dry.
B). Installing our LED bulb, the holder must match bulb's base.
C). Checking the installation, switch on. Showing a great performance.
